Mobile Concrete Batching Plant

Mobile ConcreteBatching Plant

1.Brief Introduction Of Mobile ConcreteBatching Plant:

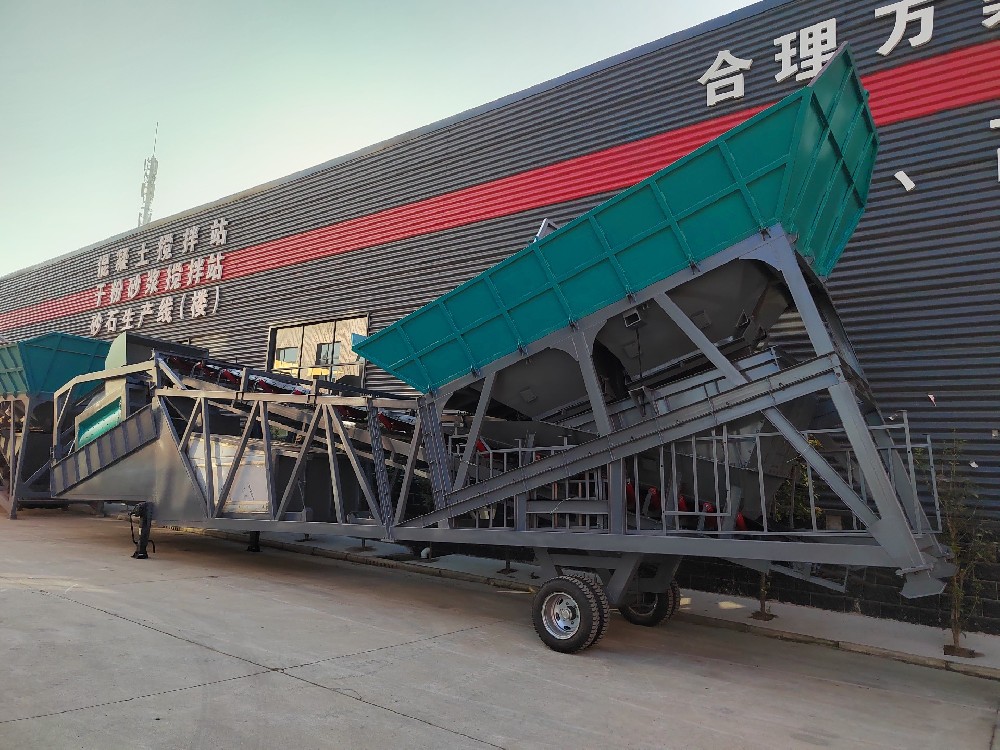

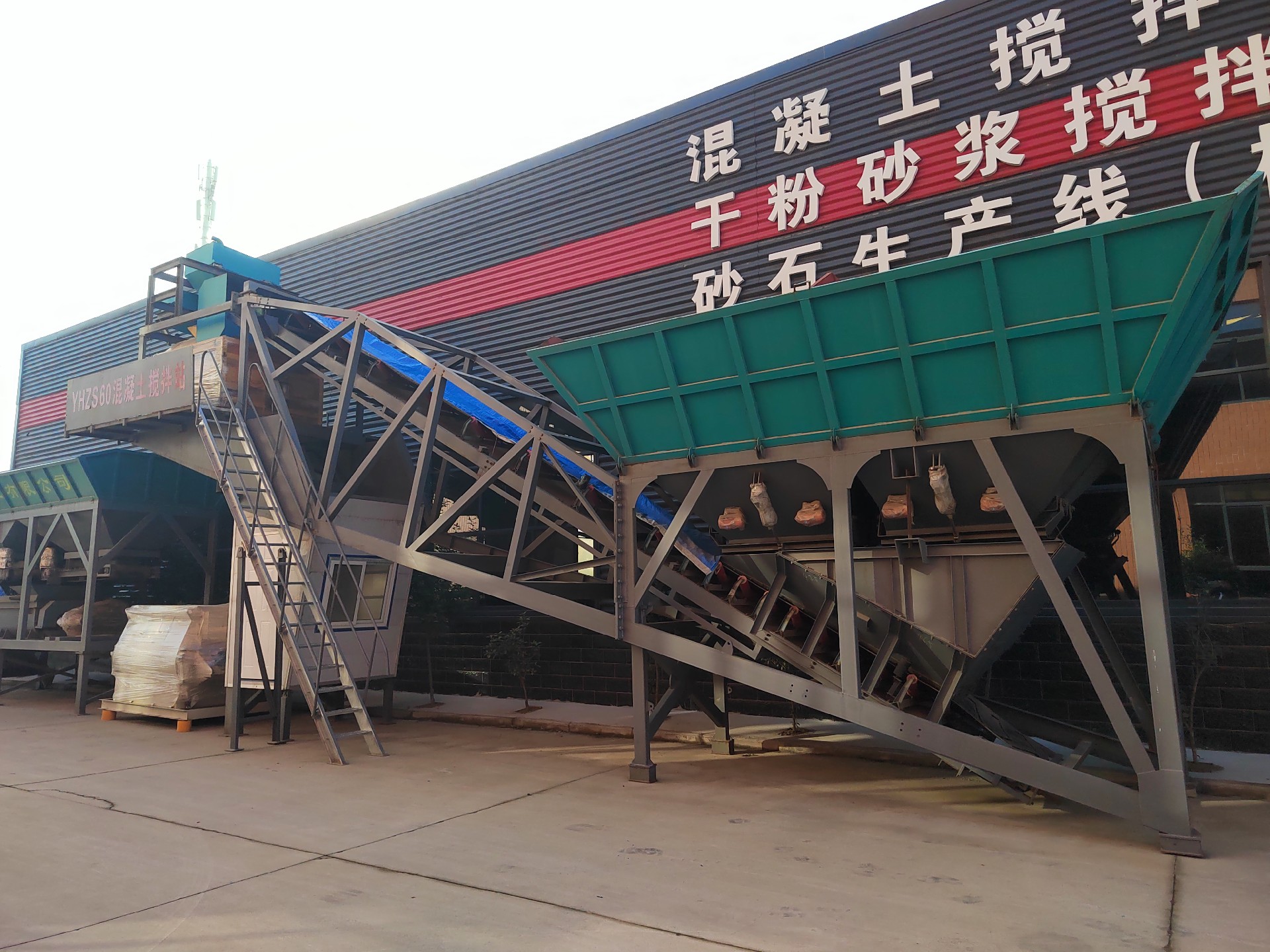

HZS series mobile concretebatching plant is one kind of highly integration concretebatching plant. It is designed for customer which needs to change working site frequently. All components is fixed on the chassis of concrete mixing plant, and it is with wheel which is easily for movement. This plant is completely equipped with concrete batching system, mixing system, weighing system and fully automatic control system.

2. Application:

It occupiesless plan andis suitable for medium and small movable engineering construction project, such aswater and electricity, road construction,airport, bridge,etc.

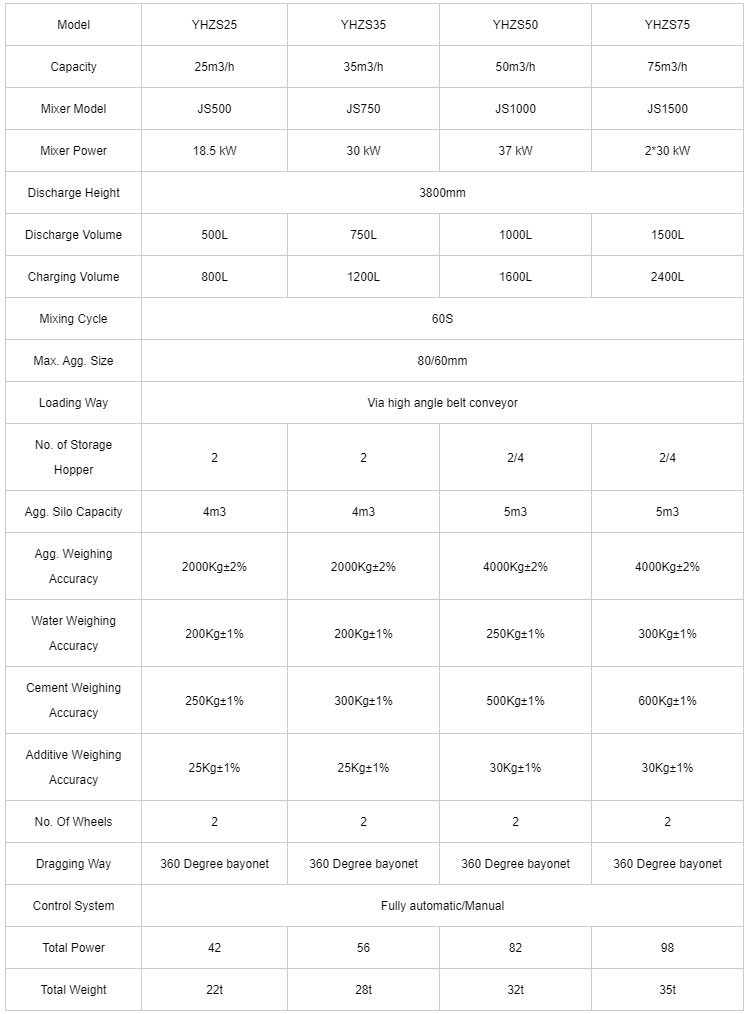

3.Parameters:

Any change of technical data shall not be advised additionally.

4.Feathers Of Main Parts In Mobile ConcreteBatching Plant:

Adopt the integral wheel axle, with strong load capacity, to keep the safety of the worker and the equipment when move.

The batching machine adopts the belt weight, pneumatic discharge, fast and exact measure, the hopper size can be customized.

Hopper type belt loading aggregate, with high productionefficiency, belt was fixed by sidewall wheel, tokeepfast and stablerunning.

Twin-shaft horizontal mixer,advancedtechnology,reliableperformance and high productivity.

Water, cementandadditive measurement can produce a variety of grade concrete.

Full automatic control system, just one person can control the whole plant to save the labor cost.
