Foundation-free Concrete Mixing Plant

Foundation-free Concrete Mixing Plant

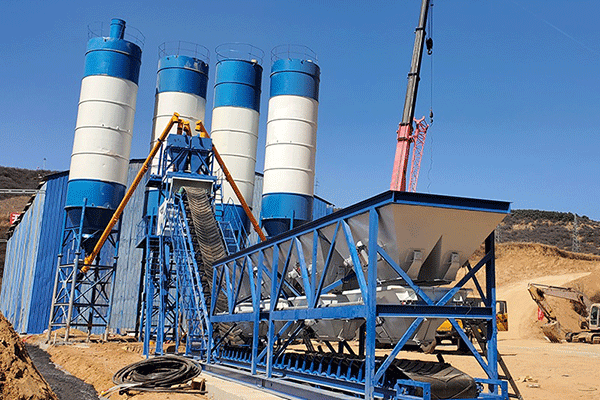

The foundation-free concrete mixing station is a complete set of automatic concrete mixing equipment, which is composed of batching, mixing and electric control. It is suitable for medium-sized and large-scale construction sites, prefabricated factory, high-speed rail and highway and Water Conservancy and hydro-power projects and commercial concrete production lines. Its main features:

The foundation-free mixing station is a breakthrough innovation which is based on the traditional fixed and mobile concrete mixing station, and is designed by our company independently, the aggregate storage and batching machine, powder storage bin, liquid storage tank, weighing system, conveying system, water and air route, power line control and mixing system, automatic control system and control operation room of the concrete mixing station are all centralized in the same frame platform, the utility model has the advantages of compact structure and stable and reliable performance of the whole structure.

It can satisfy the quality and output of all kinds of concrete, and designed the folding structure of mixing machine frame and conveying frame during the use, transfer and transportation, under the folding state, it can meet the requirements of one-vehicle transportation transfer (according to the special road transportation situation, this set of equipment can realize the transportation of two small-sized vehicles in rapid segments) , it avoids the tedious process of repeated disassembly and debugging.

When in use, after folding and stretching, a small part of the lines and pipelines can be connected to the main power supply and put into use, greatly reduced the later use of the cost, the entire installation of all models folding process not more than 6 hours to complete the entire installation and debugging. The installation and commissioning period of such station can save at least 3-15 days compared with the traditional mixing plant , but also to avoid the future, circuit, gas, water, repeated disassembly and installation.The utility model has the advantages of free foundation, small occupation area, beautiful and stable structure, and convenient movement of the field under the use condition.The power of the whole machine is 20% less than that of the traditional mixing plant. This series of products has the advantages of simple storage and management, high degree of automation, flexibility and convenience.

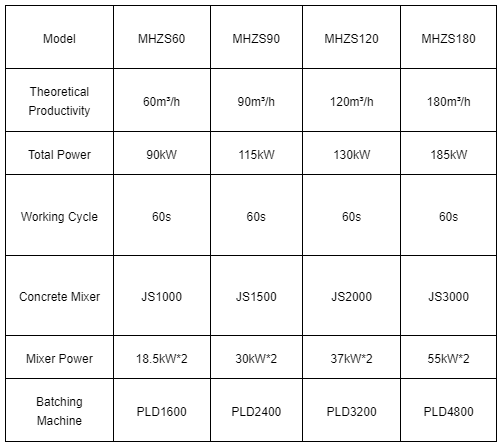

Main specifications:
