Screw Conveyor

Screw Conveyor

1. Brief Introduction

LSY screw conveyor is mainly used totransportcement and fly-ash from silo to concrete mixer and also widely applied in chemical industry, metallurgy, granary processing, warehousing, etc.

2. Feathers

This machine is with smaller diameter, high revolving speed, large conveying capacity, high precision and nice conveying condition.

High Efficiency Conveying: Adopt new suspension type middle bearing bracket which enlarges the material conveying space and reduce the drag force.

Easy assembly: Shell is high class seamless tube and it connects each part with flanges, which ensure materials continuously conveying whatever large dip angle or horizontally.

Easy Connection: Discharge hole can be connected with flange, bag and bag boom and feeding hole is connected by universal joints angle which can be adjusted optionally.

Reliable Sealing: Shell pipe is installed of anti-water seepage device and auxiliary hole is also improved to avoid rain entry causing cement caking to block pipe or damage machine.

Free of Lubrication Design: The novel neck bearing materials’ application not only can reduce friction, improve wear-resisting feature but also can lubricate by itself.

Specialized Reducer: Specialized reduceris designed to be advanced and reasonable with the advantages of small volume, light weight, high torque, fast rotation speed, no oil seepage, no noise, etc.

Variousworking position and working condition, easy to dismount and repair, safe and reliable performance.

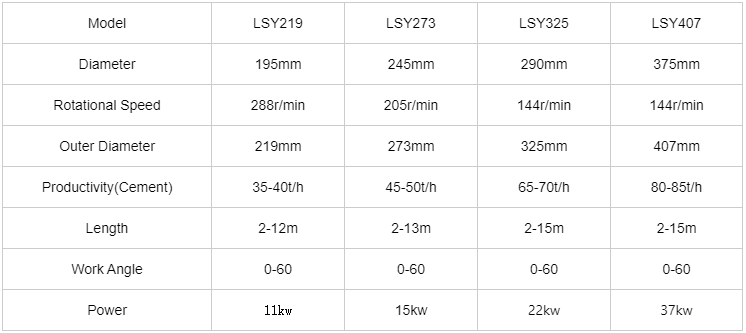

3.Parameters:

Any change of technical data shall not be advised additionally.
