Belt Type Concrete Batching Plant

Belt Type ConcreteBatching Plant

1.Brief Introduction

Belt Concrete Batching Plant Series are suitable for the commodity concrete and concrete construction in each kind of architectural project, including water conservancy, electric power, railroad, tunnel, arch of bridge, harbor-wharf and national defense project, etc. The application scope is widely spread.

2.Application

HZS Series stationary concrete batching plant can mix hard concrete, plastic concrete, liquid concrete, and other various lightweight aggregate concrete.

3.Main Configuration Of ConcreteBatching Plant

1. Mixing System

2. Electric control system

3.Belt conveying system

4. Aggregate temporary storage bucket

5. Aggregate weighing system

6. Cement weighing system

7. Fly ash weighing system

8. Water weighing system

9. Liquid additives weighing system

10. Electrical circuit system

11. Screw conveyor

12. Cement silo

13. Control room

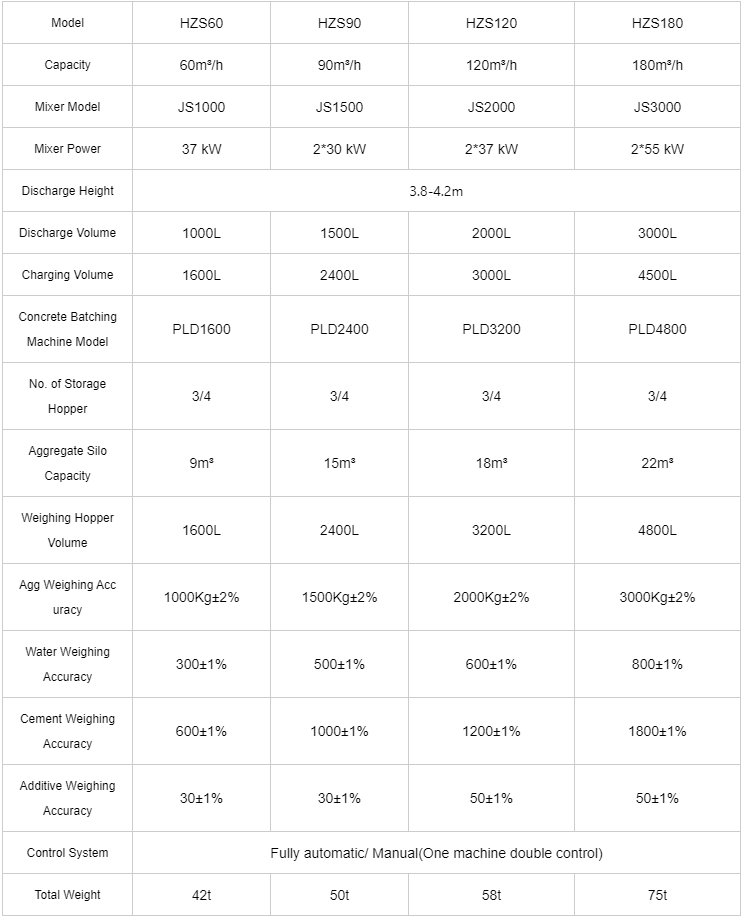

4.Parameters

Any change of technical data shall not be advised additionally.

5.Feathers Of Main Parts In ConcreteBatching Plant

Weighing system uses two modesofrough weighing and accurate weighing. Firstly weigh 95% of total weight by rough weighing and secondly weigh 100% by accurate weighing. Compared with common weighing, it is with higher weighing accuracy and small error.

Adopt pre-mixing technology to mix all materials in advance to save 10% mixing time and improve production efficiency.

Feeding belt machine is with head sweeper to keep clean and extend service life.

Feeding belt adopts suspension type reducer for easy maintenance.

Totally enclosed and with air condition which greatly enhance the comfort of operator, reduce the labor intensity of operators.

PC+PLC control system ensures the high reliability. Human-based intelligent control facilitates the operation greatly, can meet the requirement of every high performance concrete.
